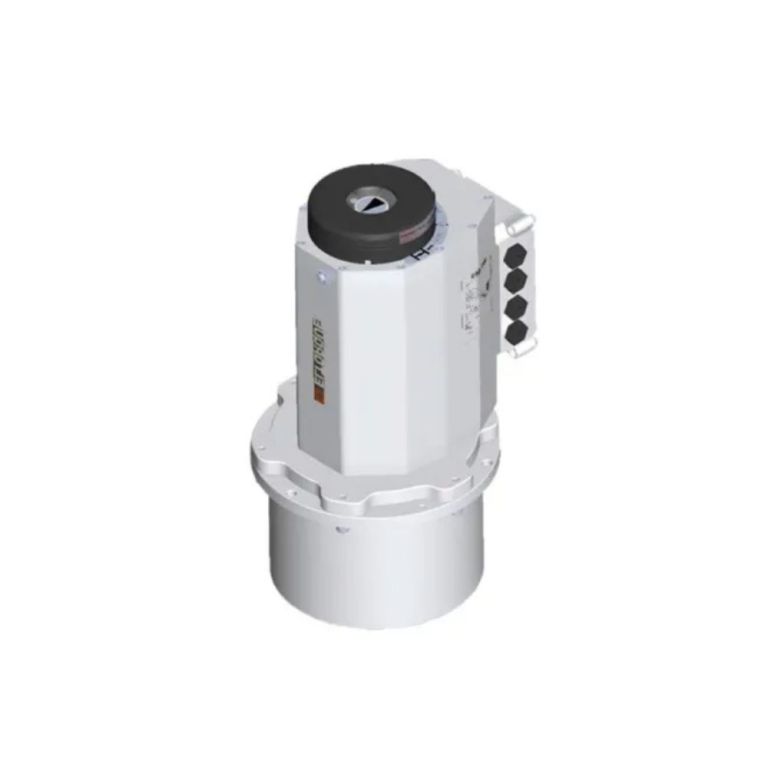

QT2500 EXD
The QT2500 EXD Quarter-Turn actuator is suitable for medium-sized butterfly and ball valves with an operating torque below 2500 Nm. It is ideal for use in a wide variety of industrial environments.
| Min-max torque | 2300 Nm |
| Min-max closing time 0-100% / 0-90 | 109 – 214 sec |
| Valve spindle adapter | SQ36 Depht 60mm |
| Valve flange | F12, F14, F16 (According to ISO5211) |
| Valve applications | Butterfly or ball valves with the quarter-turn operation. Examples of butterfly valves: DN400-DN600 |
| Weight | 50 kg |
| Dimensions H/W/D | 451/247/294 mm |
| Encapsulation | IP68 (10m 72hr) – Corrosion protected aluminum enclosure |
| Color | RAL9006 marine painting for Open Deck |
| Operating conditions | -25 to +70°C |
| Temperature protection | Motor current is switched off in case of over-temperature. Stator coils are utilized as heating elements in case of low temperatures. |
